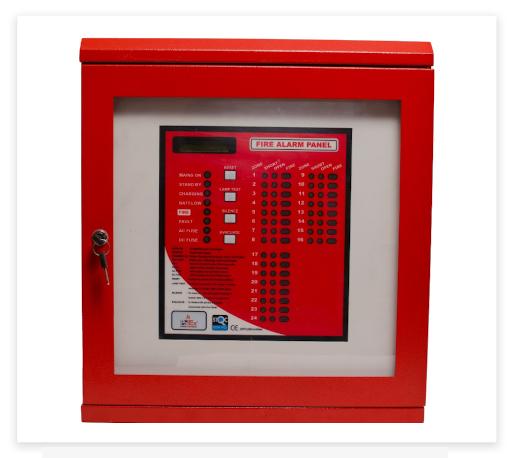

The TFW-24Z is an24-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with PSS-24Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.
Advance Micro Controller based Fire Alarm Panel.
16x2 Character LCD Display.
Mains, A. C. Fail, fuse, Charging, Rev, Batt. Indication.
Zone wise fire, open, short testing facility.
Zone Wise Hooter option along with common hooter.
Contact Details :- 9540035630 , 7056753003
SKU: MF-2443-GZ05Y
Categories: Alarm Panel
Model No.: TFW – 24Z
Operating voltage Range: AC 220v 50Hz # 10%, DC 24V/ 5Amp
Operating Temperature: -0º C to 50º (176) C
Operating Humidity: 95% (non-condensing)
Hooter Output: 4 A (24v DC)
EOL: 4k7 ohm, 1 per zone
Weight: 11 kg
Construction: 1.8 mm CRCA sheet duly power coated
Dimension: H 345mm * W 420mm * D 122mm
Color: Red
