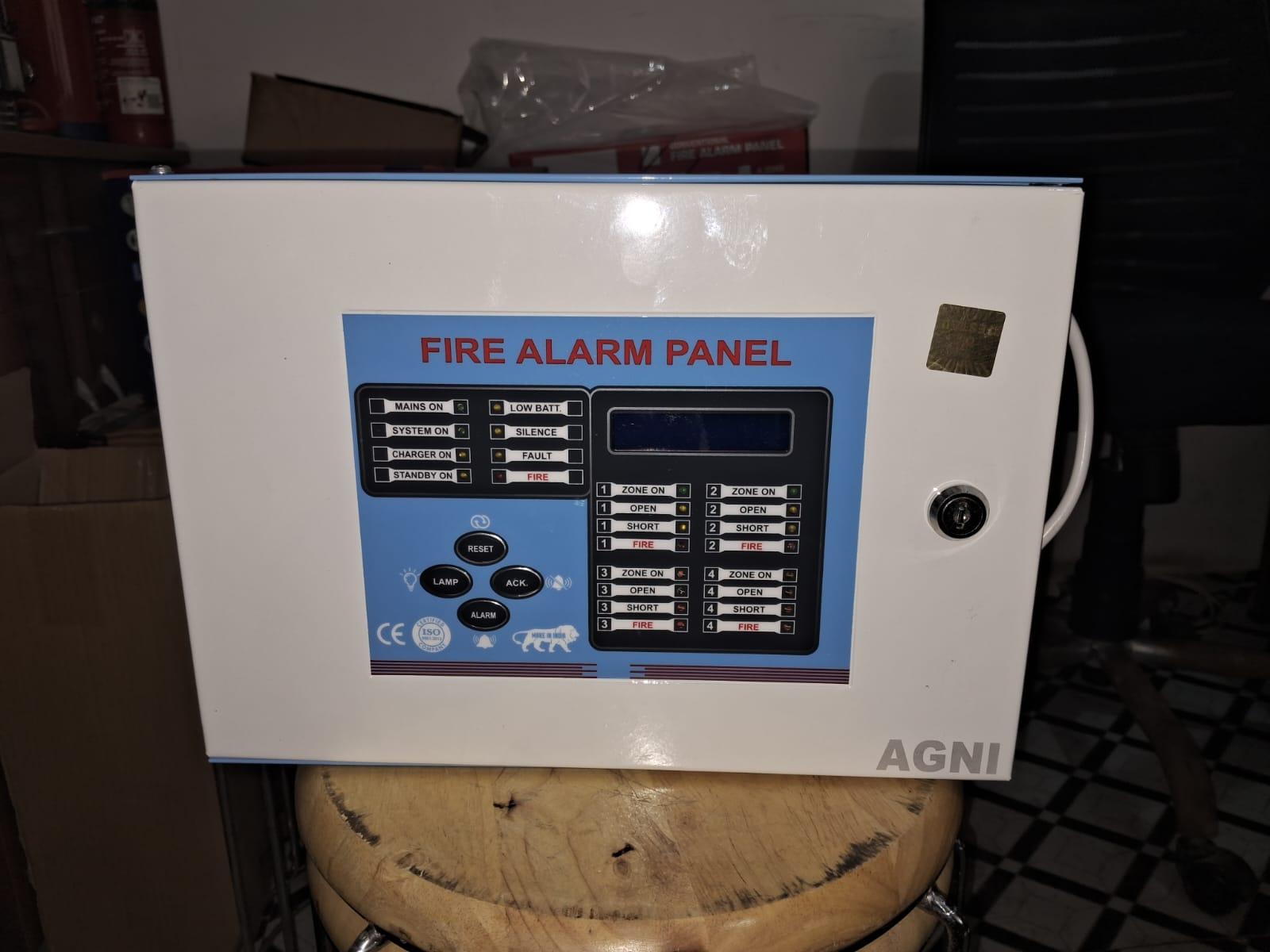

The TFW-04Z is an 4-Zone control panel. It is indicating equipment forms the central part of a fire detection and alarm system. The 2-wire is compatible with TFW-04Z devices. And it is the central part of conventional fire alarm system, designed for applications requiring gas leak detector, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button.
Operates on 230 V AC, 50 Hz AC supply
Battery backup with built in charger
Fire, fault status in unambiguous colored LED indications
16 x 2 line dot matrix LCD display
Zone wise fire, open, short LED indications.
SKU: MF-2443-P5UEP
Model No.: TFW – 04Z
Operating voltage Range: AC 220v 50Hz ± 10%, DC 24 v 1.5 amp
Operating Temperature: -0º C to 50º C
Operating Humidity: 95% (non-condensing)
Hooter Output: 1 A (24v DC)
EOL: 4k7 ohm, 1 per zone
Construction: 1.8 mm CRCA sheet duly power coated
Dimension: H 245mm * W 315mm * D 90mm
Color: Blue White
